WIRE MESH FENCE SERIES,
POSTED AND ACCESSORIES

Roll Top Fence

Introduction:

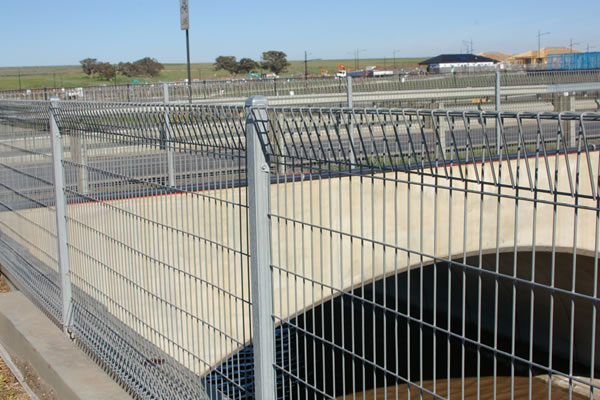

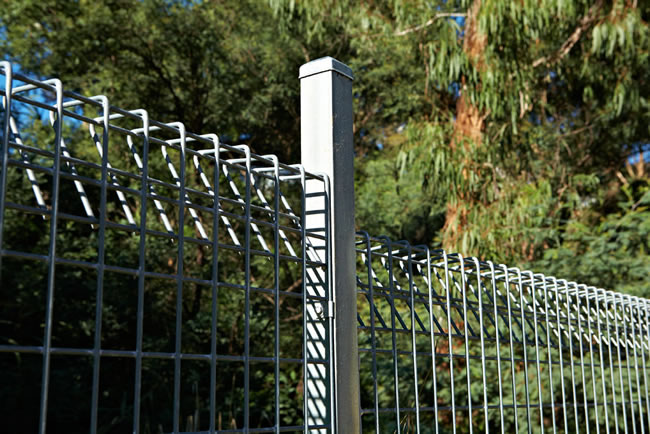

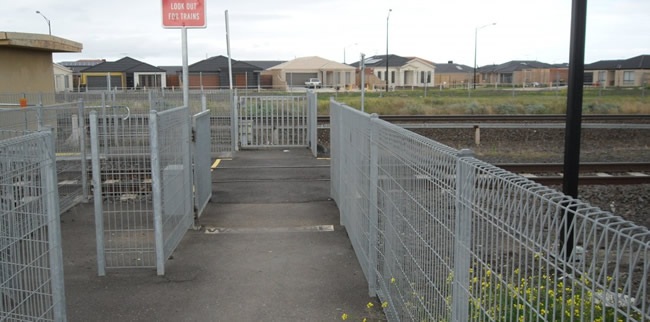

Roll Top Fence is a welded mesh panel fence that has a rolled top and bottom edge for enhanced safety and rigidity.

The panels have a unique and "user friendly" closed beam section located along the top and bottom edge of the panel. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.

  • Surface Treatment:PVC coated,Galvanized+PVC coated,Galvanized+Electrostatic polyester coated,Hot dipped galvanized etc.
  • The fixing accessories of fence panel and post:Metal clamps,U clips, M clamps, Six Jaw clips and Top cap,bolts,nuts and so on.

Features:

  • Aesthetic appearance
  • High rigidity
  • Excellent through vision
  • Wide range of colour options
  • Available as a complete system

Application:

Living area and villa area fence, Schools, Sports, Parks & Play grounds, Company premises.

Fencing Specifications:

Specification list of Roll Top Fencing
Fence Height
(mm)
Fence Width
 (mm)
Mesh
(mm)
Wire
(m
m)
900
1200
1500
1800
2200
2400
2000
2400
2500
50x100
50x150
50x200
4.0
4.5
5
6

Materials and specifications can be made as request.

Trade offer presented at the individual query.

post type and size

Square Post

Size

40*60mm,60*60mm,60*80mm,80*80mm

thickness

2.0mm,2.3mm, 2.5mm, 3.0mm

height

1.4m,1.7m,2.0m,2.3m,2.8m,3.0mor a as your request

Round post

Size

40mm,50mm,60mm, 80mm

Thickness

2.0mm,2.3mm, 2.5mm, 3.0mm

Height

1.4m,1.7m,2.0m,2.3m,2.8m,3.0m,or a as your request
