Barbed Wire

Barbed Wire Overview
Classified into PUMA, MOTTO and IOWA types, barbed wire is actually produced mostly in IOWA types. Materials applies include galvanized steel and plastic coated carbon steel.

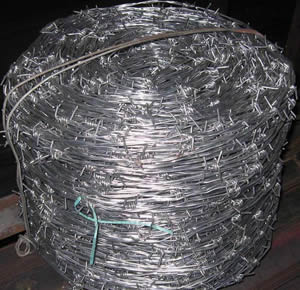

Galvanized Barbed wire
Galvanized Barbed Iron Wire in IOWA type has 2 strands and 4 points. Barbs' distance can be 3-6 inches with a tolerance at 1/2" less or more.
Galvanized Barbed Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Patterns Available for Galvanized Barbed Wire:
Single Twisted Barbed Wire
Double Twisted Barbed Wire
Traditional Twisted Barbed Wire
Features: Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

Packing: In coils.

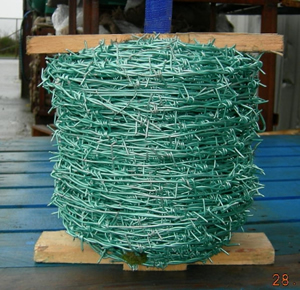

PVC Coated Barbed Wire
We offer plastic coated barbed wire in different colors, mostly green coated.
Technical Info of PVC Coated Barbed Iron Wire:
Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
Colors: A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

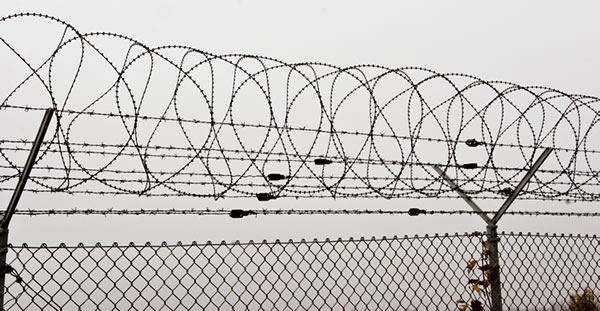

Barbed Wire Uses: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.

Type	Wire Gauge (SWG)		Barb Distance (cm)	Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip galvanized barbed wire	10# x 12#		7.5-15	1.5-3
	12# x 12#
	12# x 14#
	14# x 14#
	14# x 16#
	16# x 16#
	16# x 18#
PVC coated barbed wire; PE barbed wire	before coating	after coating	7.5-15	1.5-3
	1.0mm-3.5mm	1.4mm-4.0mm
	BWG11#-20#	BWG8#-17#
	SWG11#-20#	SWG8#-17#
	PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
