WIRE MESH FENCE SERIES,
POSTED AND ACCESSORIES

Double Wire Fence

Introduction:

Double wire fencing uses high quality low carbon steel wire as raw material. It is welded with one vertical wire and two horizontal wires; this can be strong enough, compared to the normal welded fence panel. The wire diameters are available, such as 6mm×2+5mm×1 ,8mm×2+6mm×1. It obtains high strong powers to resist the construction.

  • Surface Treatment:Galvanized+Electrostatic polyester coated,Hot dipped galvanized

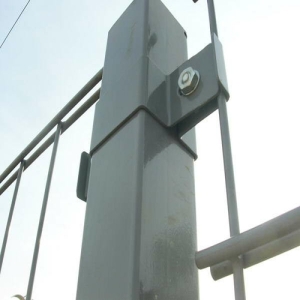

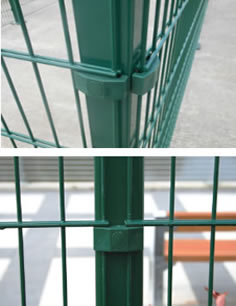

  • The fixing accessories of fence panel and post::Metal clamps, M clamps, steel flat(Peach shape Post No connecting parts)and Top cap,bolts,nuts and so on

Features:

  • Double wire fencing has the features of grid structure, beauty and practical, landscaping. In addition, double wire fencing is easy for plants to climb and widely used in parks and living areas.
  • Because of the double wire fencing features of easy transportation and installing without the limitations of special terrain. It is adjust to mountain, hillside and winding zones. Double wire fencing as professional fence is used in airports and military bases.
  • While adding elbow, razor wire, barbed wire and other security accessories, it can protect the enhance sites further more.

Application:

The double wire fencing price is under the medium level, it is widely used in industrial sites, playing fields, entertainment, schools and nurseries as security fencing.

Fencing Specifications:

Double Wire Fence
Height
× Width Panel
mm
Mesh Size
mm
Wire Diameter Post of Height
mm
Wire Dia
mm
Wire Dia
mm
Wire Dia
mm
1030×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1500
1230×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1700
1430×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1900
1630×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2100
1830×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2400
2030×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2600
2230×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2800
2430×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 3000

Materials and specifications can be made as request.

Trade offer presented at the individual query.

post type and size

Square Post

Size

40*60mm,60*60mm,60*80mm,80*80mm

thickness

2.0mm,2.3mm, 2.5mm, 3.0mm

height

1.5m,1.7m,1.9m,2.1m,2.4m,2.6m,2.8m,3.0m,or a as your request

Round post

Size

50mm,60mm, 80mm

Thickness

2.0mm,2.3mm, 2.5mm, 3.0mm

Height

1.5m,1.7m,1.9m,2.1m,2.4m,2.6m,2.8m,3.0m,or a as your request

Peach shape Post

Size

50*70mm,70*100mm

Thickness

1.5mm,2.0mm

Height

1.5m,1.7m,1.9m,2.1m,2.4m,2.6m,2.8m,3.0m,or a as your request
