Welded Mesh Fencing

Introduction:

Welded Mesh Fencing is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid fence. A number of differing designs are manufactured from 3mm to 6mm wire at varying spacings for economy or strength.

Welded security fencing panels offer an extremely high resistance to vandalism. Welded mesh panel fencing combines shape and panel strength for a pleasing see-through perspective and the positive properties of chain link fence and railings in a unique way.Welded mesh fencing is characterized by it's attractively profiled mesh panel.

• Surface Treatment:PVC coated,Galvanized+PVC coated,Galvanized+Electrostatic polyester coated,Hot dipped galvanized etc.

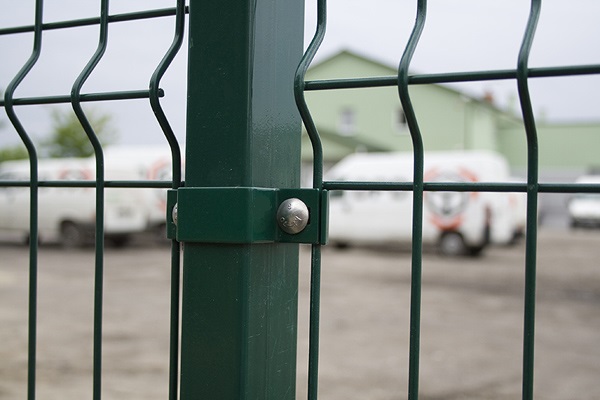

• The fixing accessories of fence panel and post::Metal clamps,Plastic clamps, M clamps, Six Jaw clips and U clips(Peach shape Post No connecting parts)and Top cap,bolts,nuts and so on.

Features:

• The installation is flexible and convenient, and can be applied to any terrain, especially to the mountainous slopes with more curved terrain adaptability.
• Affordable, suitable for large-scale field.
• Beautiful appearance with a variety of colors to choose from
• Reinforced triangular bending process enhances the strength of the mesh and beautiful appearance of the fence

Application:

Highway ,Railway, Airport, Community, Living area and Villa areas fence, Field fences, Garden fence, all kinds of closed area.

Fencing Specifications:

Standard Size Panels
Mesh size mm	Wire Size mm	Panel width mm	Panel Height mm	Folds NOS
50x50 50x100 50x150 50x200	3.0 3.5 4.0 4.5 5.0	1800 2000 2400 2500 3000	1030 1230 1530 1830 2030 2230 2430	2 2 3 3 4 4 4

Materials and specifications can be made as request.
Trade offer presented at the individual query.

Post type and size

Square Post
Size	40*60mm,60*60mm,60*80mm,80*80mm
thickness	1.5mm,2.0mm,2.3mm, 2.5mm, 3.0mm
height	1.5m,1.7m,2.0m,2.3m,2.5m,2.8m,3.0m,or a as your request
Round post
Size	40mm,50mm,60mm, 80mm
Thickness	1.5mm,2.0mm,2.3mm, 2.5mm, 3.0mm
Height	1.5m,1.7m,2.0m,2.3m,2.5m,2.8m,3.0m,or a as your request
Peach shape Post
Size	50*70mm,70*100mm
Thickness	1.5mm,2.0mm
Height	1.5m,1.7m,2.0m,2.3m,2.5m,2.8m,3.0m,or a as your request
